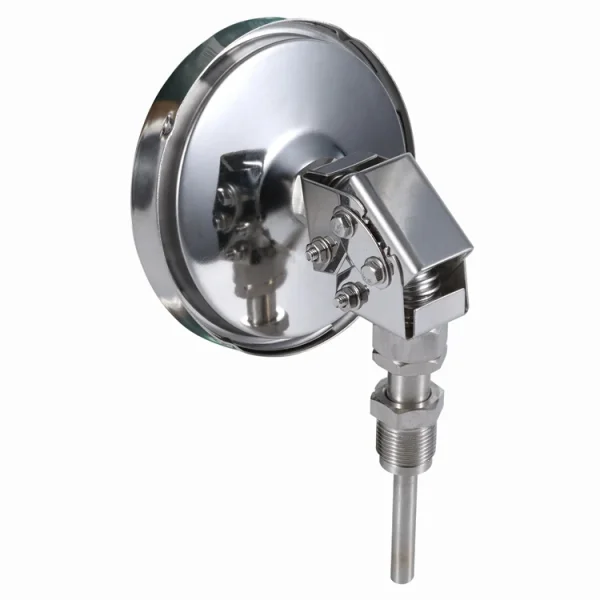

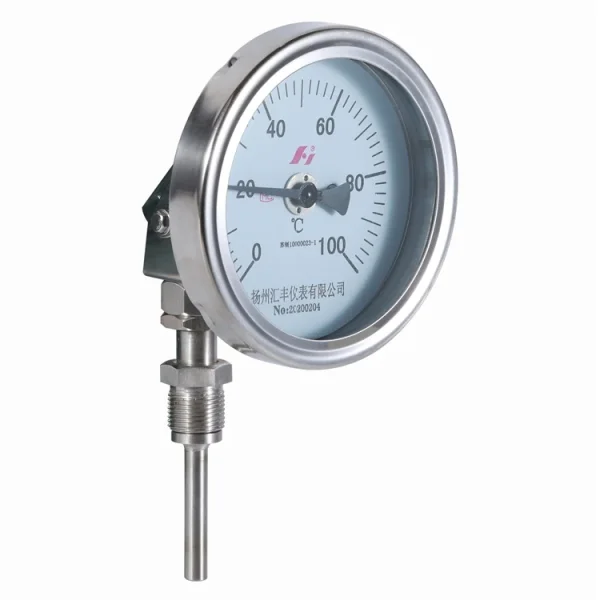

TBM-Bi-Metal Thermometer
Overview: Precisely monitor temperatures in demanding environments with a Stainless Steel Industrial Bi-Metal Thermometer. The durable all-stainless steel construction provides excellent corrosion resistance, making it ideal for a wide range of industrial applications, including chemical, food and beverage, and HVAC.
| Dial |
1” (25mm), 2” (50mm): Aluminum with black markings, flat dial
3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm) Aluminum with black markings, anti-parallax |
| Case |
AISI 304 SS |
| Stem |
AISI 304 SS, centre back, bottom or adjustable angle configurations (316 SS optional*)
1″ (25mm), 2” (50mm) dial: Centre back connection only |
| Recalibrator Screw |
Standard |
| Lens |
1” (25mm): Polycarbonate
Others: Glass standard, hermetically sealed |
| Ring |
AISI 304 SS |
| Connection |
1” (25mm): None
2” (50mm): 1/4” NPT standard
3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm): 1/2” NPT standard |
| Movement |
Bi-metallic coil |
| Pointer |
Aluminum, painted black |
| Maximum Operating Pressure |
125 psi (861 kPa) |
| Operating Temperature |
75% of full scale value (recommended maximum) |
| Ambient Temperature |
-58°F to 248°F (-50°C to 120°C) |
| Accuracy |
±1% of full scale |
| Enclosure Rating |
2″ (50mm) to 6″ (150mm): IP68 |
