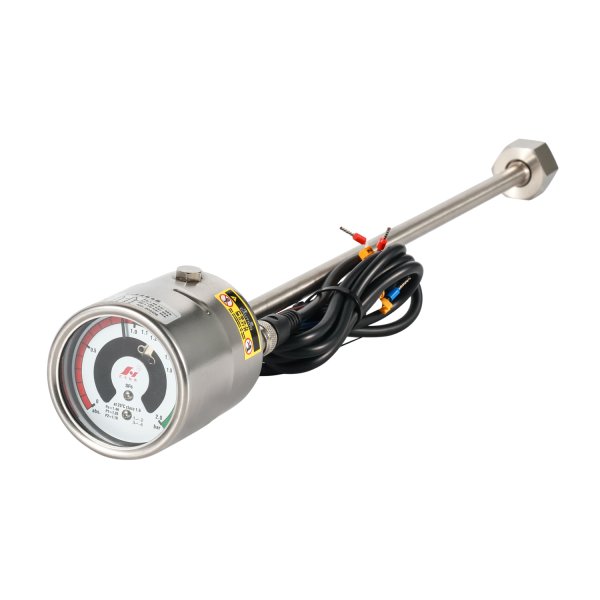

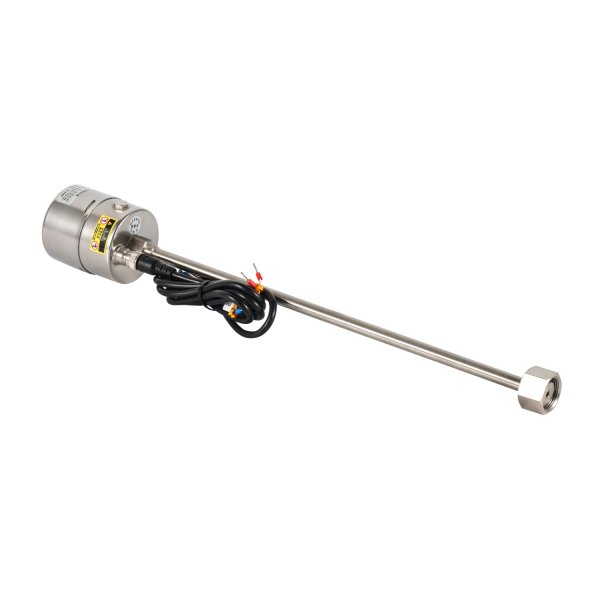

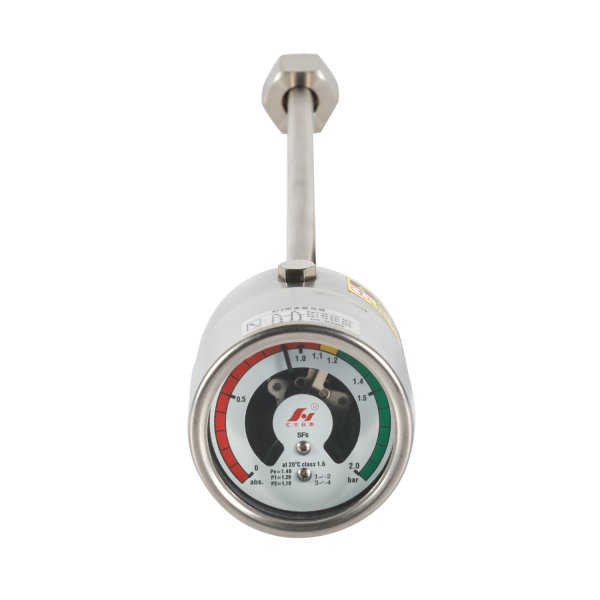

Model HMK-63 SF6 Gas Density Indicator
Overview: Secure the integrity of your gas-insulated equipment with the Model HMK-63 SF6 Gas Density Indicator. This precise instrument provides a reliable, real-time measurement of SF6 gas density, ensuring operational safety and efficiency. Ideal for monitoring high-voltage circuit breakers and switchgear.
SF6 gas density indicator is a device that measures and displays the density of SF6 gas in a sealed container. It is commonly used in electrical switchgear and circuit breakers to monitor the SF6 gas levels and ensure its proper functioning.
Special Features
- Vibration resistance designed.
- Helium leak tested.
- Gold-plated electrical contacts.
- Temperature compensation.
- Suitable for monitoring SF6, SF6 mixed gas, N2, dry air, compressed air.
Specifications
| Accuracy | 1.6 (at 20 ℃), 2.5 (at -30 ℃~0 ℃) |
| Diameter | 64 mm |
| Ambient Temperature | -30℃ to 60℃ |
| Ambient Humidity | ≤95%RH |
| Protection | IP68 |
| Gas Tightness | Leak rate≤1*10-8mbar.l/s |
| Fill Liquid | Optional |
| Connection | Lower back |
| Scale Range | 0 to 0.2 MPa (absolute pressure) |
