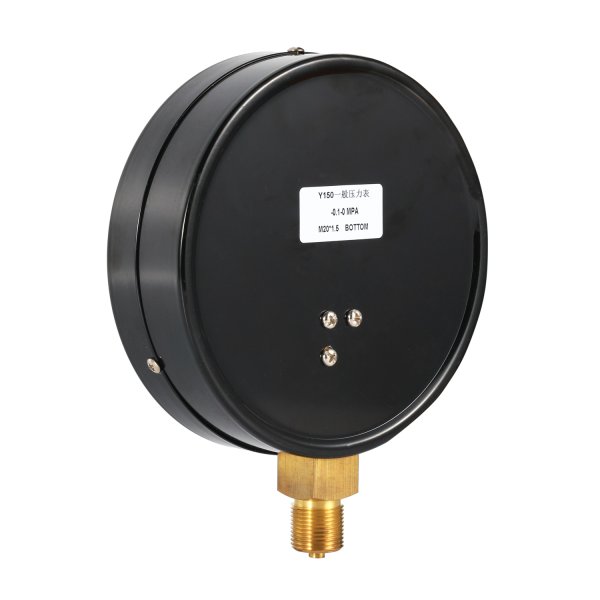

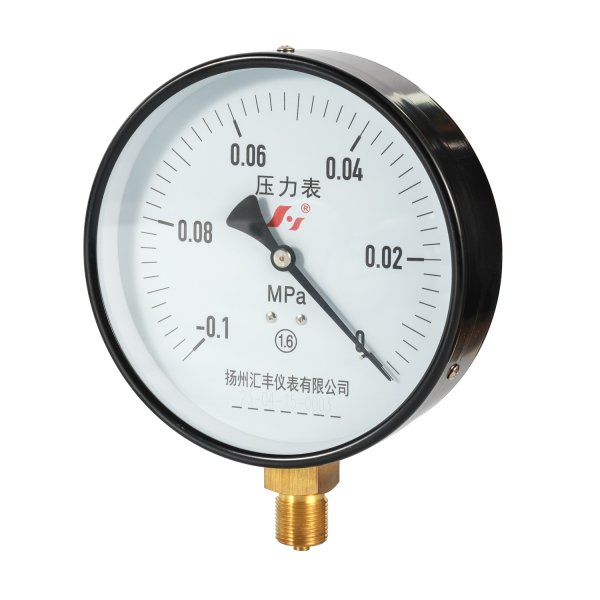

Vacuum Gauge 150mm
Overview: Maximize readability with our 150mm Bourdon Tube Vacuum Gauge. Equipped with a robust carbon steel black painted case, this large-dial gauge combines excellent visibility with cost-effective durability, making it perfect for general-purpose vacuum monitoring in HVAC and industrial machinery.
| Brand | Huifeng or customer brand |
| Application | HVAC, Oil&Gas |
| Instrument Type | Bourdon tube pressure gauge |
| Conformity | EN 837 |
| Case | 150 mm; black painted steel |
| Lens | Acrylic, glass |
| Pointer | Aluminum, Black |
| Dial | Customized |
| Bourdon Tube | Phosphor bronze; C type |
| Socket | Brass |
| Accuracy | 1.6% of full scale value |
| Range | -0.1 MPa to 0 |
| Enclosure Rating | IP 52 |
| Working Pressure | 75% of FSV |
