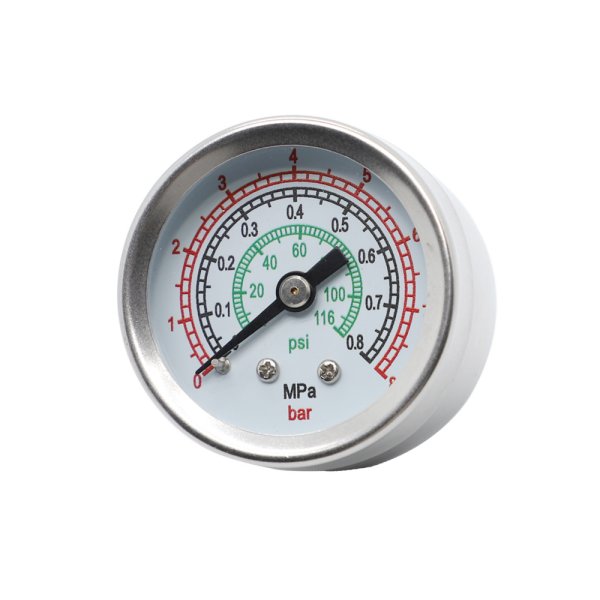

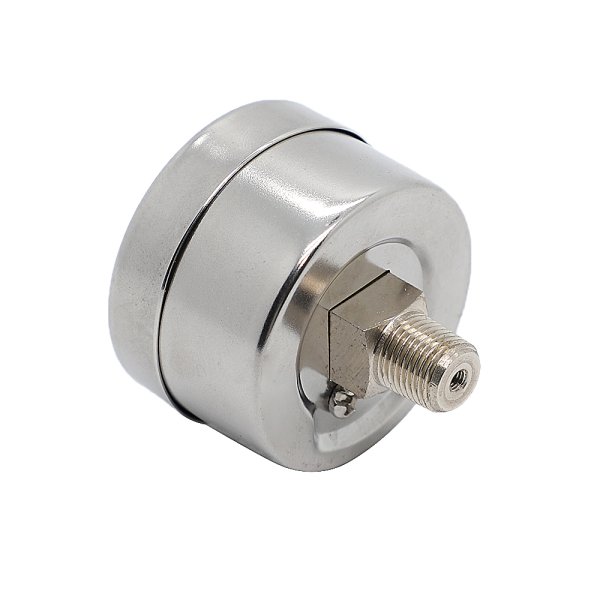

Pressure Gauge for Valve Positioner
Overview: The pressure gauge on the valve positioner allows operators to monitor the pressure inside the positioner, which is important for ensuring the proper functioning of the valve. The pressure gauge typically displays the pressure in units such as psi (pounds per square inch) or bar.
| Brand | Huifeng or customer brand |
| Application | Pneumatic, Valve positioner |
| Instrument Type | Bourdon tube pressure gauge |
| Conformity | EN 837 |
| Case | 40 mm; 304 SS |
| Lens | Polycarbonate |
| Pointer | Aluminum, Black |
| Socket | NPT 1/8"; stainless steel |
| Movement | Stainless steel |
| Dial | Customized |
| Accuracy | ±1.6% of full scale value |
| Process Temperature | -40 °C to 65 °C |
| Enclosure Rating | IP52 |
| Range | 0 to 1 MPa / 10 bar / 140 psi |
| Working Pressure | 75% of FSV |
