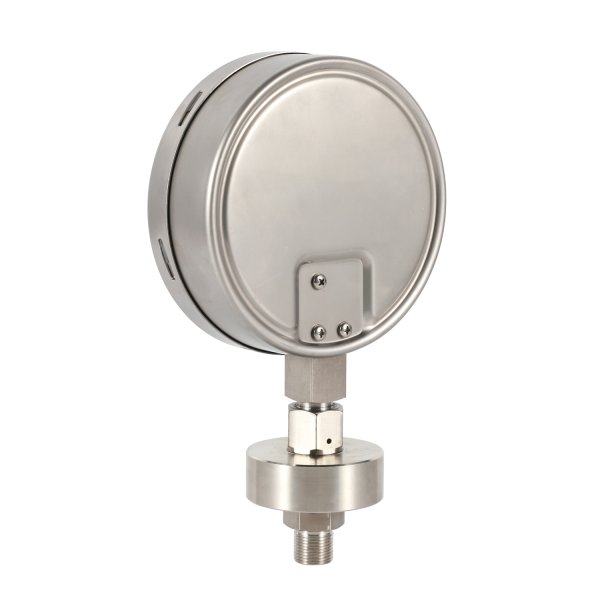

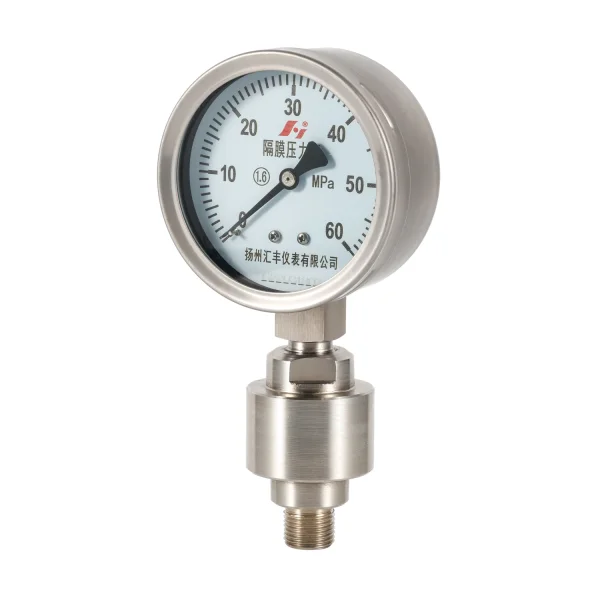

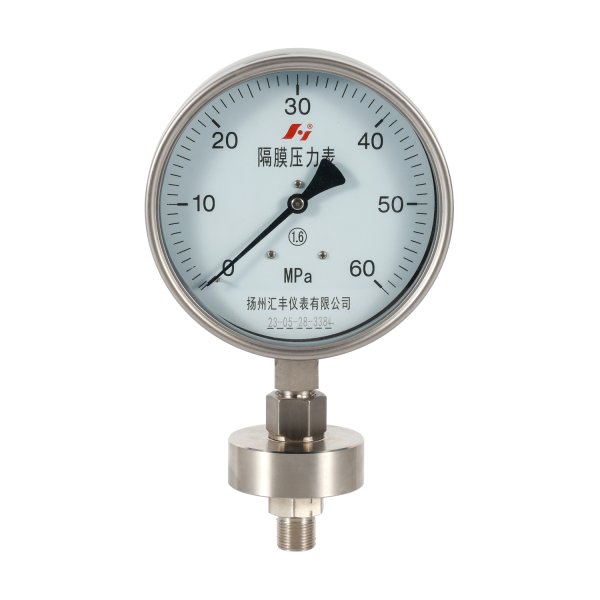

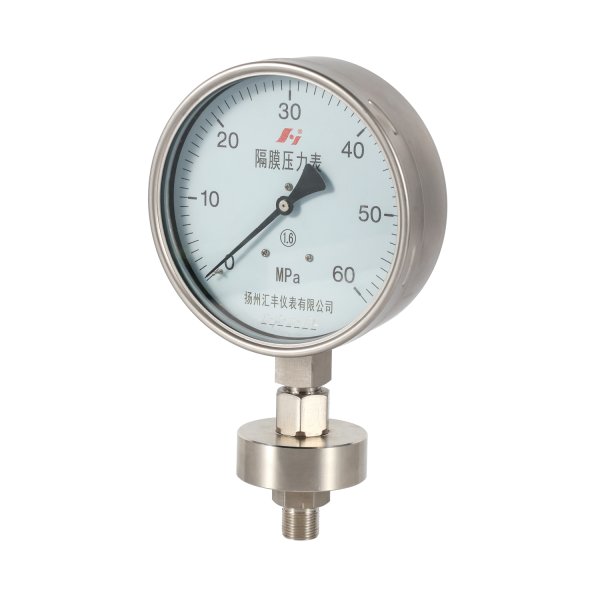

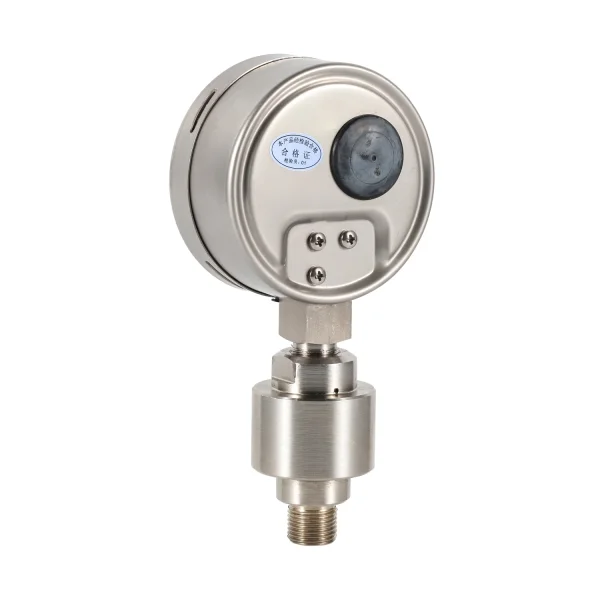

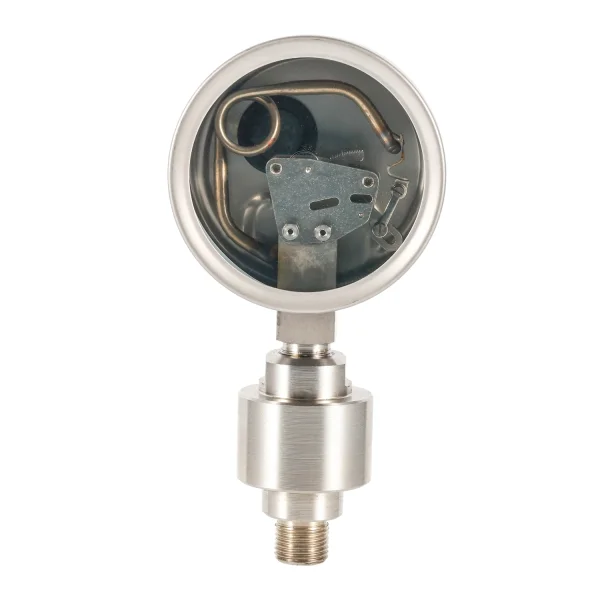

High Pressure Diaphragm Pressure Gauge 60 MPa
Overview: This high pressure diaphragm pressure gauge is engineered for accurate and reliable measurement in demanding high-pressure applications. Its robust diaphragm seal isolates the sensor from the media, making it ideal for corrosive, viscous, or high-temperature fluids while ensuring long-term performance and safety.
| Brand | Huifeng or customer brand |
| Application | Chemical & Petrochemical, Oil & Gas |
| Instrument Type | Diaphragm pressure gauge |
| Conformity | EN 837 |
| Case | 63 mm, 100 mm; bayonet bezel |
| Lens | Polycarbonate |
| Pointer | Aluminum, Black |
| Dial | Customized |
| Diaphragm element | 316 SS |
| Fill Liquid | Glycerin |
| Accuracy | 1.6% of FSV |
| Function | Vibration resistance, crystallizing fluids, viscous fluids, sedimentous fluids |
| Range | 0 to 60 MPa |
| Working Pressure | 75% of FSV |
