Pressure Gauges
Reliable Industrial Solutions

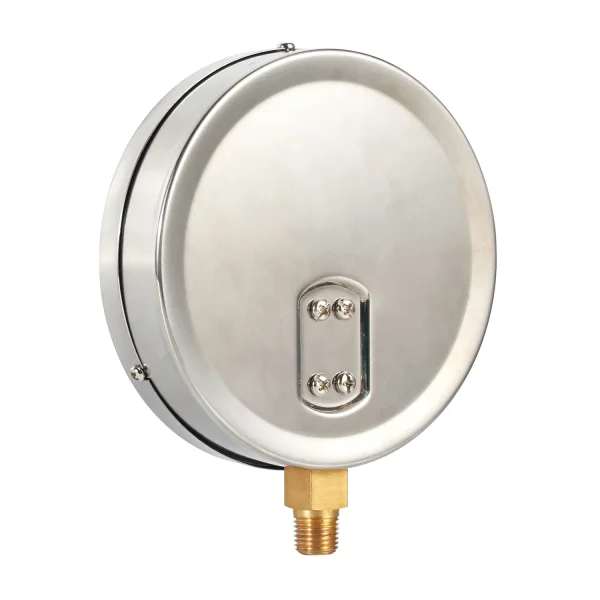

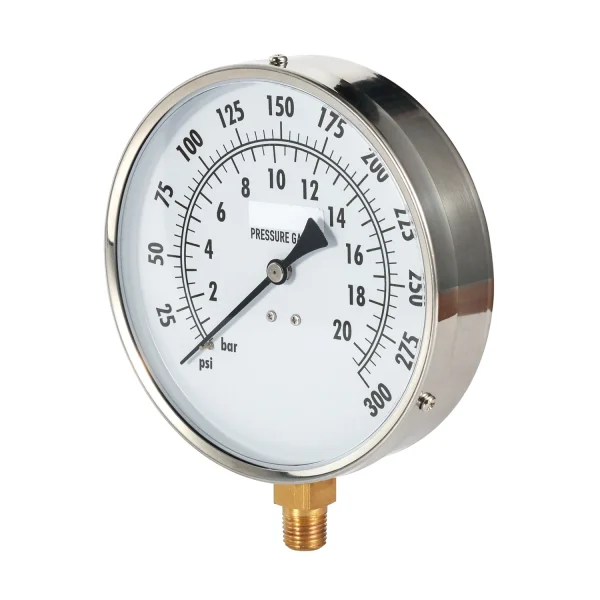

Fire Sprinkler Pressure Gauge 100 mm 300 psi 20 bar Dual Range
Overview: Standard fire protection pressure gauge, 100 mm dial size. Measures system pressure up to 300 psi (20 bar) with a dual-scale design. Ideal for wet sprinkler systems.
| Brand | Huifeng or costomer brand |
| Application | Fire Sprinkler |
| Instrument Type | Bourdon tube pressure gauge |
| Conformity | UL listed |
| Case | Stainless steel; screwed bezel |
| Lens | Glass |
| Dial | 100 mm |
| Pointer | Aluminium; anodized black |
| Bouedon tube | C type bourdon tube |
| Accuracy | 1.6% of FSV |
| Material | Stainless steel case and brass socket |
| Range | 0 to 200 bar / 300 psi |
| Working Pressure | 75% of FSV |
