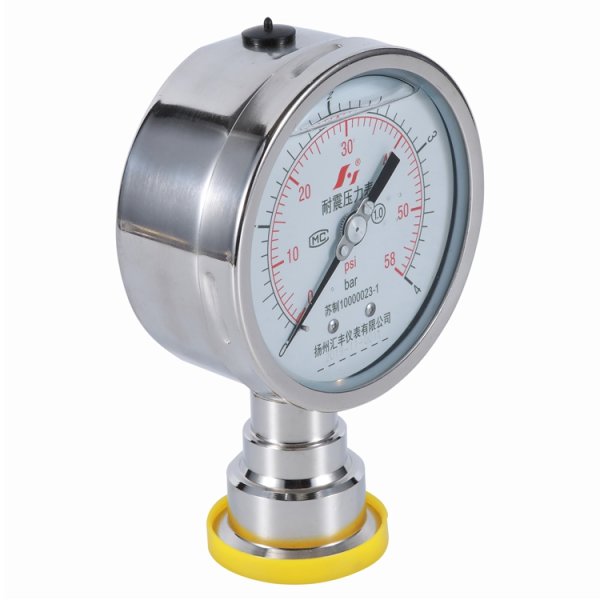

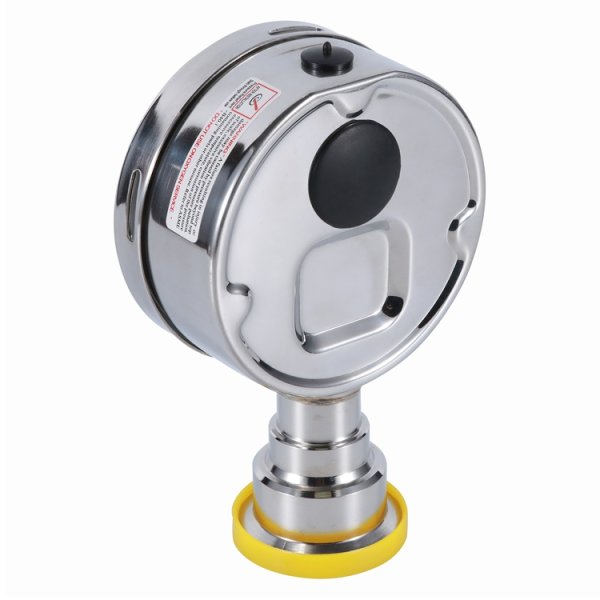

Diaphragm Pressure Gauge ss Case 63mm 0 to 4 bar Sanitary Type
Overview: Maintain impeccable hygiene in sensitive processes with the Diaphragm Pressure Gauge. Featuring a sanitary-type connection and a durable stainless steel case, this 63mm gauge is designed for industries where cleanliness is critical, such as food, beverage, and pharmaceutical. It accurately measures pressure from 0 to 4 bar without the medium touching the internal components.
| Brand | Huifeng or customer brand |
| Application | Food & Beverage, Pharmaceutical, Sanitary |
| Instrument Type | Diaphragm pressure gauge |
| Conformity | EN 837, ROHS |
| Case | 63 mm; 304 SS; bayonet bezel |
| Bourdon Tube | C type; stainless steel |
| Lens | Polycarbonate |
| Pointer | Aluminum, Black |
| Dial | Customized |
| Lens Ring Gasket | Buna N (silicone rubber optional) |
| Fill Plug | Buna N (silicone rubber optional) |
| Accuracy | ±1.0% of FSV |
| Function | Vibration resistance, crystallizing fluids, viscous fluids, sedimentous fluids |
| Range | 0 to 4 bar / 58 psi |
| Working Pressure | 75% of FSV |
