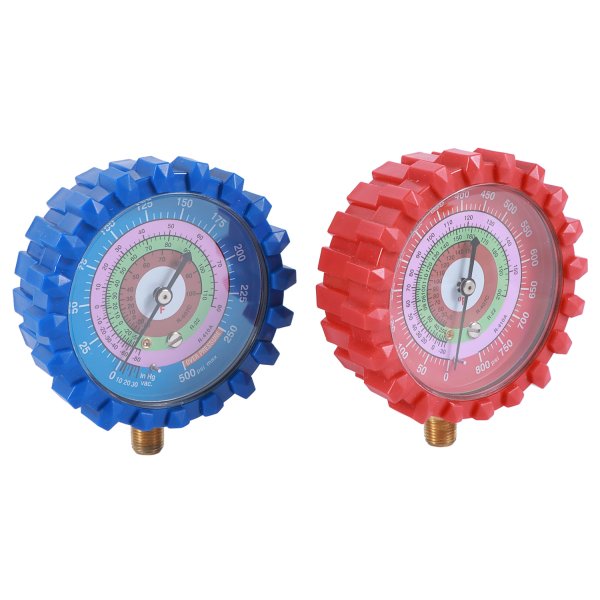

Customized Refrigerant Pressure Gauge Steel Case 80 mm 500 psi 800 psi
Overview: Refrigerant pressure gauges are simply used to monitor HVAC systems. The vast majority of gauges can be used to measure pressure of any type of refrigerant, however the temperature scales located on the inner rings of the gauge are based on pressure-temperature data for specific refrigerants.
| Brand | Huifeng or customer brand |
| Application | HVAC, Refrigeration compressor, Refrigerant recovery |
| Instrument Type | Bourdon tube pressure gauge |
| Accuracy | ±1.6% of FSV |
| Case | Steel; low pressure painted blue and high pressure painted red |
| Bourdon Tube | Phosphor bronze |
| Socket | Brass, NPT 1/8" or NPT 1/4" |
| Lens | Acrylics; snap in |
| Pointer | Aluminum; anodized black |
| Dial | Customized |

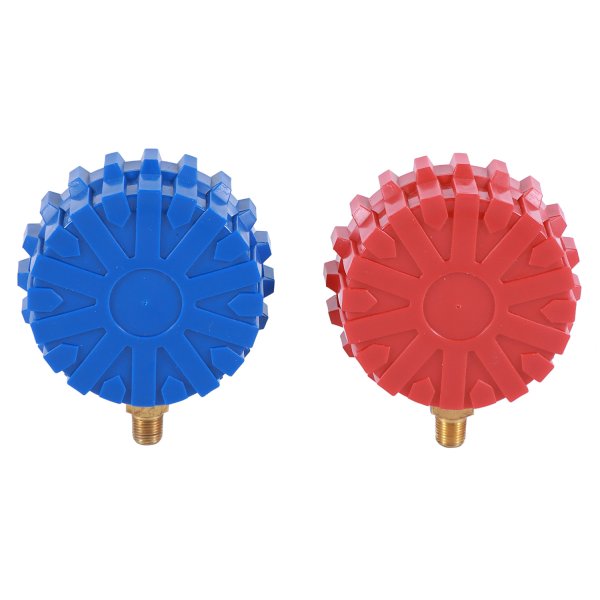

| Accessories | Rubber boots |
| Function | Vibration resistance(flutterless movement) |
| Range | Low pressure -1 bar to 500 psi, high pressure 0 to 800 psi |
| Working Pressure | 75% of full scale value |
| Process Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
