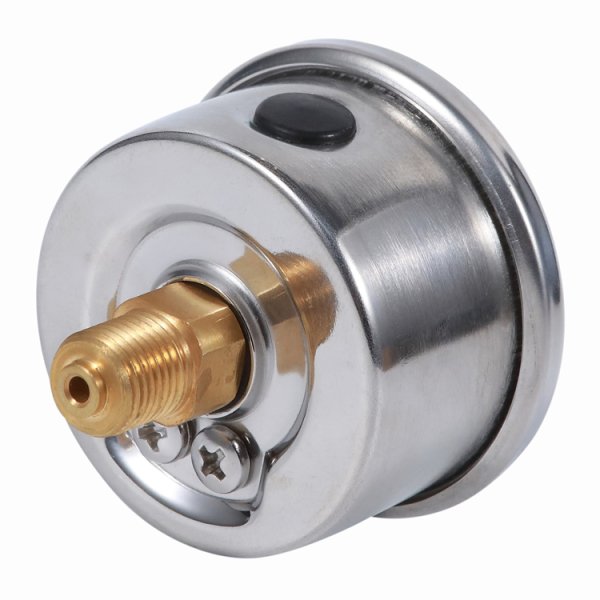

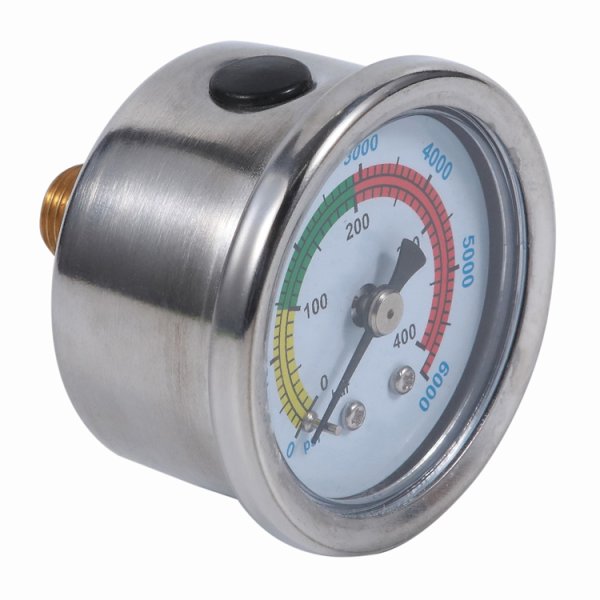

Air Compressor Pressure Gauge ss Case 40mm 0 to 400 bar
Overview: This gauge is capable of withstanding the high pressures generated by the compressor. This allows operators to monitor and adjust the pressure as needed to ensure optimal performance and safety of the compressor and any connected equipment.
| Brand | Huifeng or customer brand |
| Application | Air compressor, Sporting equipment |
| Instrument Type | Bourdon tube pressure gauge |
| Case | 40 mm; 304 SS; crimped ring |
| Lens | Polycarbonate |
| Pointer | Aluminum, Black |
| Dial | Customized |
| Connection | Bottom, NPT 1/4" |
| Fill Liquid | Buna N (silicone oil optional) |
| Fill Plug | Buna N (silicone rubber optional) |
| Lens Ring Gasket | Buna N (silicone rubber optional) |
| Accuracy | ±2.5% of full scale value |
| Function | Vibration resistance |
| Enclosure Rating | IP64 |
| Range | 0 to 400 bar / 6000 psi |
| Working Pressure | 50% of FSV |
