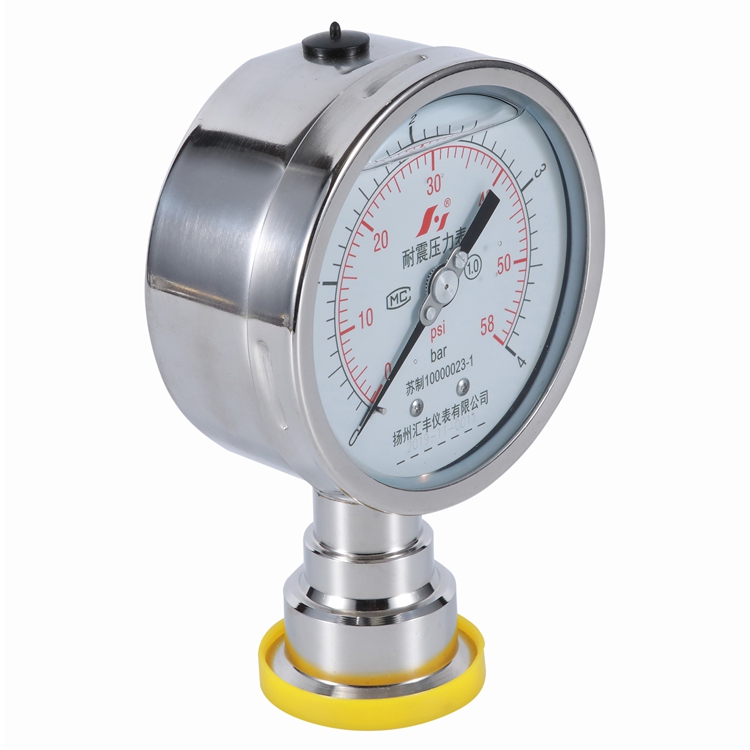

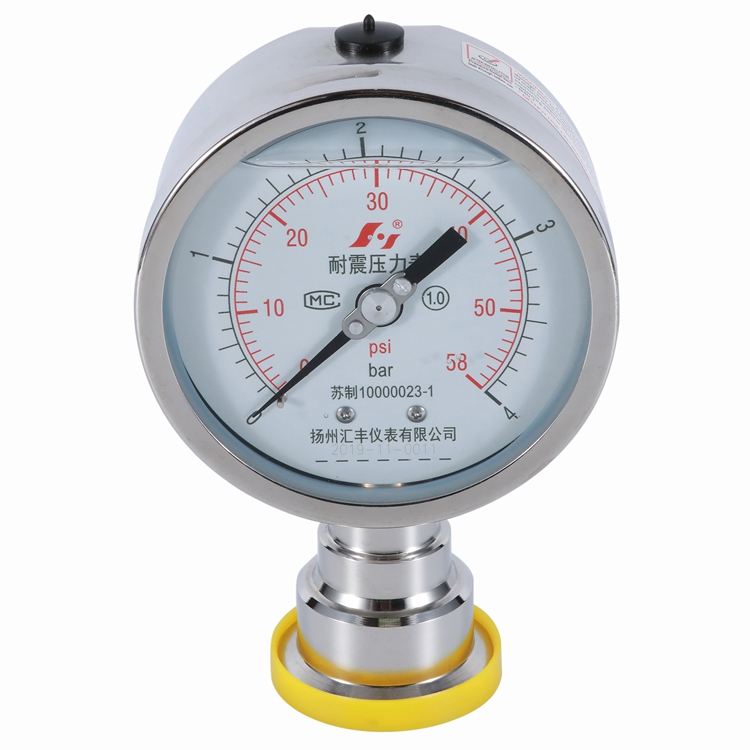

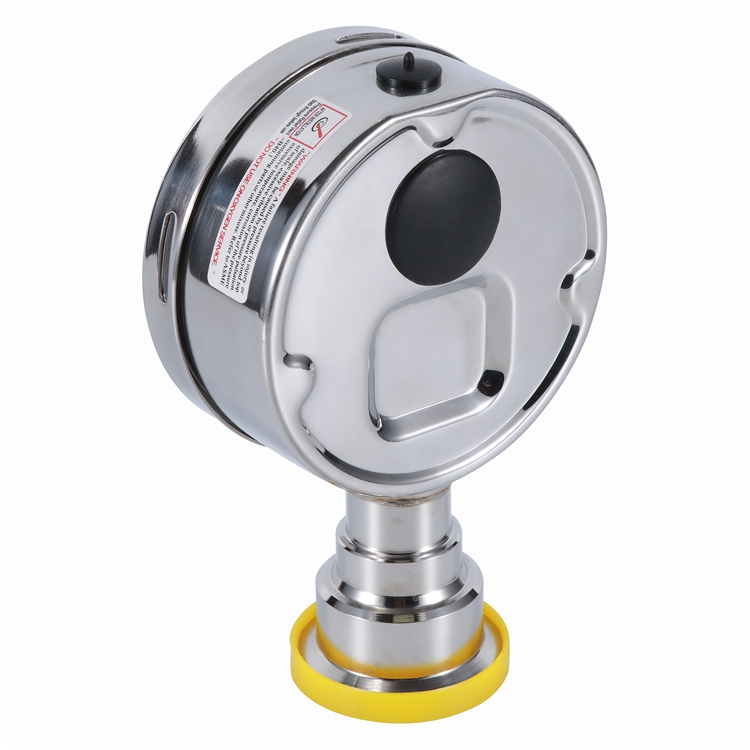

Diaphragm Pressure Gauge ss Case 63mm 0~4 bar Sanitary Type Diaphragm Pressure Gauge ss Case 63mm 0~4 bar Sanitary Type
Diaphragm Pressure Gauge ss Case 63mm 0~4 bar Sanitary Type Diaphragm Pressure Gauge ss Case 63mm 0~4 bar Sanitary Type
Diaphragm Pressure Gauge ss Case 63mm 0~4 bar Sanitary Type Diaphragm Pressure Gauge ss Case 63mm 0~4 bar Sanitary Type

Diaphragm Pressure Gauge ss Case 63mm 0~4 bar Sanitary Type

Quantity:
  • C type
  • bottom
  • put-in
  • clip plug
  • 50pcs
Product Description
Brand: Huifeng or customer brand
Application : Food & Beverage,Pharmaceutical,Sanitary
Instrument type: Diaphragm pressure gauge
Conformity: EN837,ROHS
Case: 63mm,304ss,Bayonet bezel
Bourdon tube: C type,Stainless steel
Lens: Polycarbonate
Pointer: Aluminum, Black
Dial: Customized
Lens Ring Gasket: Buna N (silicone rubber optional)
Fill Plug: Buna N (silicone rubber optional)
Accuracy: 1.0% of FSV
Function: Vibration resistance,Crystallizzing fluids,Viscous fluids,Sedimentous fluids
Range: 0~4 bar/0~58 psi
Working pressure: 75% of FSV
